Regular Lever Offset Type - Limit Switch Levers

Offset lever with straddle-supported roller.

Compatible Namco Limit Switch Series: EA040, EA060, EA080, EA170, EA700, EA710, EA730, EA760, EA770, EA780, EA790, EA800, EA880, EA990 only

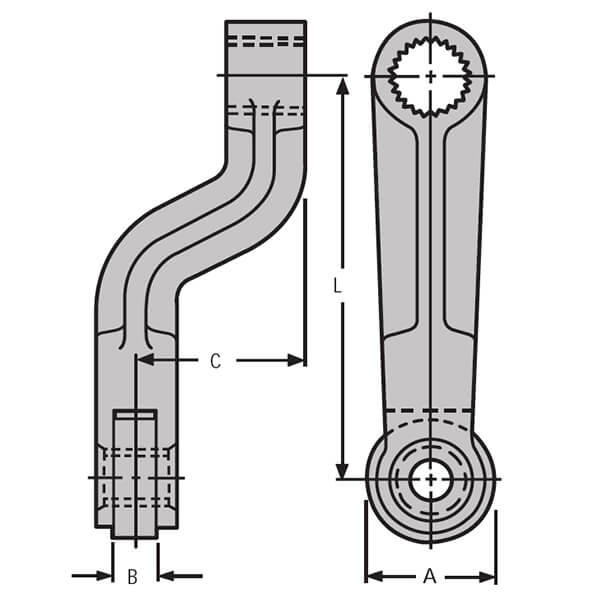

Ordering Numbers		L	A	B	C	Material
Part Number	Reference	L	A	B	C	Lever	Roller
EL020-53326*	D1260GX	1-1/2"	3/4"	1/4"	1-1/4"	Mang. Br.	Steel
EL020-53325*	D1260GU	1-1/2"	3/4"	1/4"	1-3/16"	Mang. Br.	Steel
EL020-55327	D1260HZ	2"	3/4"	1/4"	1-1/8"	Mang. Br.	Steel
EL020-55300	D1260JD	2"	3/4"	1/4"	1-1/2"	Mang. Br.	Steel
EL020-56321*	D1260DW	2-1/2"	3/4"	1/4"	2-1/4"	Mang. Br.	Steel
EL020-56421	D1260DG	2-1/2"	1"	1/4"	1"	Mang. Br.	Steel
EL020-58922	D1260FT	3"	1-1/4"	1/4"	1-1/4"	Mang. Br.	Steel
EL020-58923	-	3"	1-1/4"	1/4"	1-1/4"	Mang. Br.	S.S.
EL020-59900	D1260AY	5-1/2"	1-1/4"	1/4"	1-3/4"	C.R.S.	Steel

*On Series EA040/060/080/170, Lever will not clear top of switch when mounted with Roller facing rear.

Check Namco limit switch series compatibility before ordering.
