Regular Straight Type - Limit Switch Levers

Compatible Namco Limit Switch Series: EA040, EA060, EA080, EA170, EA700, EA710, EA730, EA760, EA770, EA780, EA790, EA800, EA880, EA990

Ordering Numbers		L	A	B	Material
Part Number	Reference	L	A	B	Lever	Roller
EL060-50320	D1260BA	3/4"	3/4"	1/4"	C.R.S.	C.R.S.
EL060-51319	-	1"	3/4"	1/4"	C.R.S.	Bryl. Cop.
EL060-52321	D1260GQ	1-1/4"	3/4"	1/4"	C.R.S.	C.R.S.
EL060-53923	D1260BH	1-1/2"	1-1/4"	1/4"	C.R.S.	C.R.S.
EL010-53338	DS1260	1-1/2"	3/4"	1/4"	Steel	C.R.S.
EL060-53300	-	1-1/2"	3/4"	1/4"	Brass	Bryl. Cop.
EL010-53336	-	1-1/2"	3/4"	1/4"	Steel	S.S.
EL010-53337	-	1-1/2"	3/4"	1/4"	Steel	Bryl. Cop.
EL060-53401	D1260RF	1-1/2"	9/32"	9/32"	Brass	Nylon
EL060-53402	-	1-1/2"	7/8"	9/32"	Brass	Bryl. Cop.
EL010-53420	D1260	1-1/2"	7/8"	9/32"	Steel	Nylon
EL010-53429	D1260Y	1-1/2"	7/8"	9/32"	Steel	B.B.
EL060-53536	D1260Z	1-1/2"	1"	1/4"	C.R.S.	C.R.S.
EL060-53926	D1260CL	1-1/2"	1-3/8"	1/4"	C.R.S.	C.R.S.
EL060-55327	D1260E	2"	3/4"	1/4"	C.R.S.	C.R.S.
EL060-55300	-	2"	3/4"	1/4"	C.R.S.	Bryl. Cop.
EL060-55520	D1260AC	2"	1"	1/4"	C.R.S.	C.R.S.
EL060-55601	-	2"	1"	1/4"	C.R.S.	Bryl. Cop.
EL060-55530	D1260RT	2"	1"	1/4"	Brass	Byrl. Cop.
EL060-55927	D1260GT	2"	1-1/2"	1/4"	C.R.S.	C.R.S.
EL060-50321	D1260BC	2-1/8"	3/4"	1/4"	C.R.S.	C.R.S.
EL060-50501	D1260B	2-1/8"	1"	1/4"	C.R.S.	C.R.S.
EL060-50334	D1260M	2-1/4"	3/4"	1/4"	C.R.S.	C.R.S.
EL060-59300	D1260KC	2-3/8"	3/4"	1/4"	C.R.S.	C.R.S.
EL010-56427	D1260KC	2-1/2"	7/8"	9/32"	Steel	Nylon
EL010-56334	DS1260K	2-1/2"	3/4"	1/4"	Steel	C.R.S.
EL010-55421	D1260DF	2-1/2"	1"	1/4"	C.R.S.	C.R.S.
EL060-56500	D1260RR	2-1/2"	1"	1/4"	Brass	Bryl. Cop.
EL060-56920	D1260CP	2-1/2"	1-1/2"	1/4"	C.R.S.	C.R.S.
EL060-50322	D1260BD	2-3/4"	3/4"	1/4"	C.R.S.	C.R.S.
EL060-57300	-	2-3/4"	3/4"	1/4"	C.R.S.	Bryl. Cop.
EL010-58300	-	3"	3/4"	1/4"	Steel	Bryl. Cop.
EL010-58337	DS1260L	3"	3/4"	1/4"	Steel	C.R.S.
EL060-58305	-	3"	3/4"	1/4"	Brass	Bryl. Cop.
EL010-58400	-	3"	7/8"	9/32"	Steel	Bryl. Cop.
EL010-58423	D1260L	3"	7/8"	9/32"	Steel	Nylon
EL010-58451	-	3"	7/8"	9/32"	Steel	C.R.S.
EL060-58401	-	3"	7/8"	9/32"	Brass	Nylon
EL060-58403	D1260VQ	3"	7/8"	9/32"	S.S.	Bryl. Cop.
EL010-58521	D1260CJ	3"	1"	1/4"	Steel	C.R.S.
EL010-58522	-	3"	1"	1/4"	C.R.S.	Bryl. Cop.
EL010-58923	D1260CN	3"	1-1/4"	1/4"	Steel	C.R.S.
EL060-58923	-	3"	1-1/4"	1/4"	Brass	Steel
EL010-58900	D1260VR	3"	1-1/2"	1/4"	Steel	Nylon
EL010-58920	D1260AE	3"	1-1/2"	1/4"	Steel	C.R.S.
EL060-58320	D1260BB	3-1/2"	3/4"	1/4"	C.R.S.	C.R.S.
EL060-58431	D1260AP	3-1/2"	1"	1/4"	C.R.S.	C.R.S.
EL060-58932	-	3-1/2"	3/4"	1/4"	Brass	Bryl. Cop.
EL060-58930	-	3-1/2"	1-1/2"	1/4"	Brass	Bryl. Cop.
EL060-58326	D1260C	4"	3/4"	1/4"	C.R.S.	C.R.S.
EL060-58304	D1260WD	4"	3/4"	1/4"	C.R.S.	Bryl. Cop.
EL060-50523	D1260BL	4"	1"	1/4"	C.R.S.	C.R.S.
EL060-58925	-	4"	1-1/4"	1/4"	Brass	Bryl. Cop.
EL060-58920	D1260AB	4"	1-1/2"	1/4"	C.R.S.	C.R.S.
EL060-58901	-	4"	1-1/2"	9/32"	C.R.S.	Nylon
EL060-50335	D1260N	5"	3/4"	1/4"	C.R.S.	C.R.S.
EL060-50925	D1260BW	5"	1-1/2"	1/4"	C.R.S.	C.R.S.
EL060-50305	D1260CQ	6"	3/4"	1/4"	C.R.S.	C.R.S.
EL060-50338	-	6"	3/4"	1/4"	C.R.S.	Bryl. Cop.
EL060-50930	D1260JE	6"	1-1/4"	1/4"	C.R.S.	C.R.S.
EL060-50703	D1260KD	6"	3"	1/4"	C.R.S.	C.R.S.

Check Namco limit switch series compatibility before ordering.

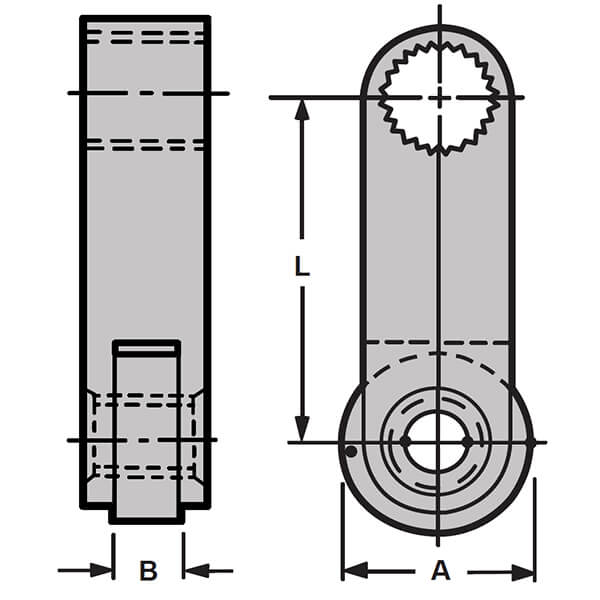

style-r-1-levers-diagram

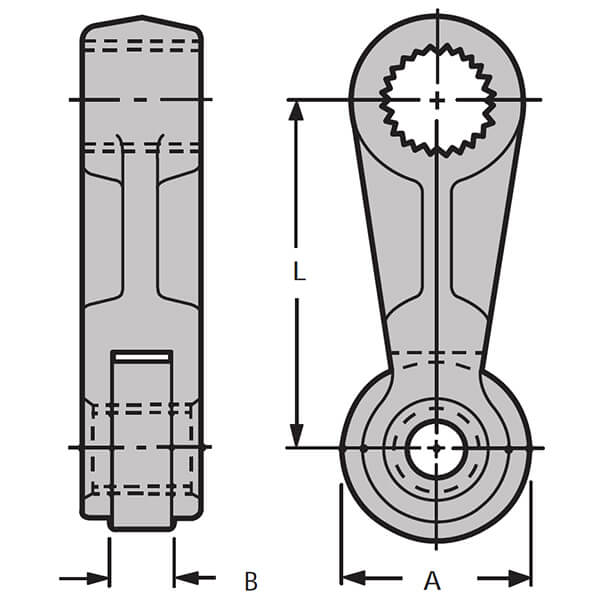

style-r-2-levers-diagram

Regular Straight Type - Limit Switch Levers
