Side Roller Offset Type Levers (Style SLO) - Limit Switch Levers


Right angle offset lever has side-supported roller mounted on end.

Compatible Namco Limit Switch Series: EA040, EA060, EA080, EA170, EA700, EA710, EA730, EA760, EA770, EA780, EA790, EA800, EA880, EA990 only.


Ordering Numbers  L A B C Material
Part Number Reference  Lever Roller
EL090-53324 D1260GZ 1-1/2" 3/4" 1/4" 1" Bronze Steel
EL090-53336 - 1-1/2" 3/4" 1/4" 1-3/8" Bronze Nylon
EL090-53321 D1260CT 1-1/2" 3/4" 1/4" 1-3/8" Bronze Steel
EL090-53322 - 1-1/2" 3/4" 1/4" 1-3/8" Bronze Bryl Cop.
EL090-53328 D1260GV 1-1/2" 3/4" 1/4" 2" Bronze Steel

Check Namco limit switch series compatibility before ordering.

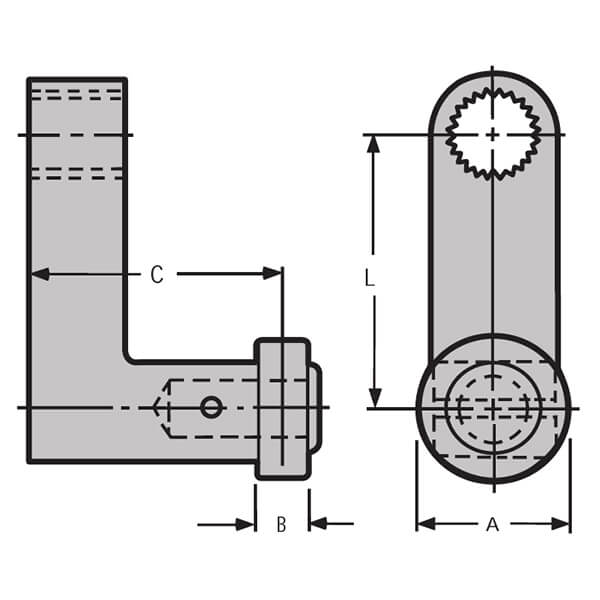

style-slo-levers-diagram
