Side Roller Type Levers - Limit Switch Levers

Side supported roller offset on front side of lever machined with straight side.

Compatible Namco Limit Switch Series: EA040, EA060, EA080, EA170, EA700, EA710, EA730, EA760, EA770, EA780, EA790, EA800, EA880, EA990 only.

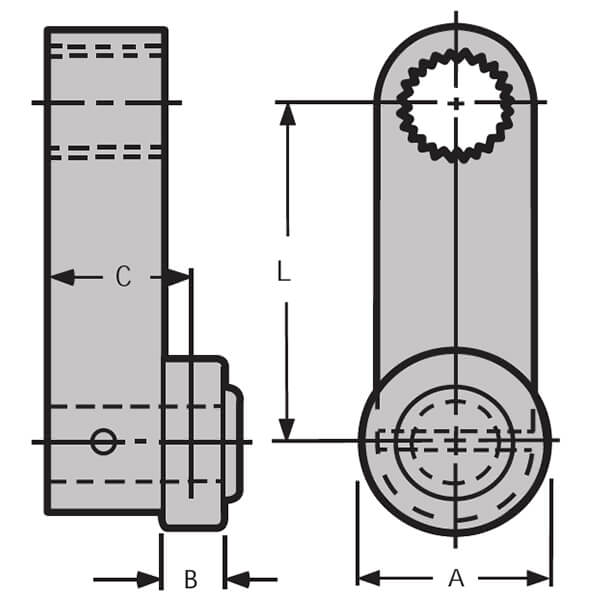

Ordering Numbers		L	A	B	C	Material
Part Number	Reference	L	A	B	C	Lever	Roller
EL150-53303	-	1-1/2"	3/4"	3/4"	7/8"	C.R.S.	Bryl. Cop.
EL150-53301	D1260A	1-1/2	3/4"	1/4"	5/8"	C.R.S.	Steel
EL150-53300	D1260DU	1-1/2	3/4"	3/4"	7/8"	C.R.S.	Steel
EL150-53901	D1260HV	1-1/2	1-1/4"	1/4"	5/8"	C.R.S.	Steel
EL150-55300	-	2"	3/4"	1/2"	3/4"	C.R.S.	Bryl. Cop.
EL150-55303	D1260DT	2"	3/4"	1/4"	5/8"	C.R.S.	Steel
EL150-55301	D1260JJ	2"	3/4"	1/2"	3/4"	C.R.S.	C.R.S.
EL150-56300	D1260DX	2-1/2"	3/4"	1/4"	5/8"	C.R.S.	C.R.S.
EL150-56500	-	2-1/2	1"	1/2"	3/4"	C.R.S.	S.S.
EL150-57300	D1260DO	2-3/4"	3/4"	1/4"	5/8"	C.R.S.	C.R.S.
EL150-58901	-	4"	1-1/4"	1/4"	5/8"	Bronze	Nylon
EL150-58902	-	4"	1-1/4	1/4"	5/8"	Bronze	Steel

Check Namco limit switch series compatibility before ordering.
