Two Roller Opposite Side - Limit Switch Levers

Angle type rocker lever has side-supported rollers mounted on opposite sides.

Compatible Namco Limit Switch Series: EA040, EA060, EA080, EA170, EA700, EA710, EA730, EA760, EA770, EA780, EA790, EA800, EA880, EA990

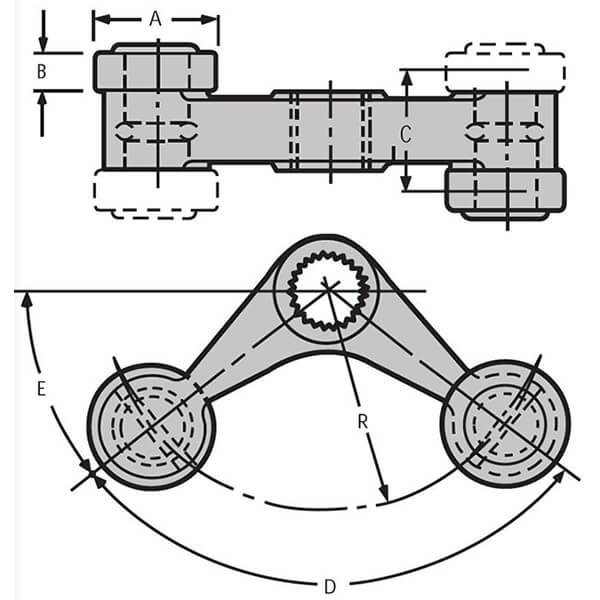

Ordering Numbers		Dimensions - See Diagram for Letters						Material
Part Number	Reference	R	A	B	C	D	E	Lever	Roller
EL030-50301	D1260AA	1-3/8"	3/4"	1/4"	3/4"	107° 34'	36° 13'	Bronze	Steel
EL030-50302	D1260DH	1-3/8"	3/4"	1/2"	1"	107° 34'	36° 13'	Bronze	Steel
EL030-52322	D1260DQ	1-1/2"	3/4"	3/4"	1-1/4"	90°	45°	Bronze	Steel

Check Namco limit switch series compatibility before ordering
