Wide Roller Regular Type - Limit Switch Levers

Offset lever with straddle-supported roller.

Compatible Namco Limit Switch Series: EA040, EA060, EA080, EA170, EA700, EA710, EA730, EA760, EA770, EA780, EA790, EA800, EA880, EA990 only.

Ordering Numbers		L	A	B	Material
Part Number	Reference	L	A	B	Lever	Roller
EL070-53501	D1260AJ	1-1/2"	1"	1/2"	C.R.S.	Bryl. Cop.
EL070-50507	D1260CY	1-5/8"	1"	1/2"	C.R.S.	Bryl. Cop.
EL070-56921	D1260DY	2-1/2"	1-1/4"	1/2"	C.R.S.	Steel
EL060-00024	D1260AL	3"	1-1/2"	1/2"	C.R.S.	Steel
EL060-50921	D1260BE	4"	1-1/4"	1/2"	C.R.S.	Steel

Check Namco limit switch series compatibility before ordering.

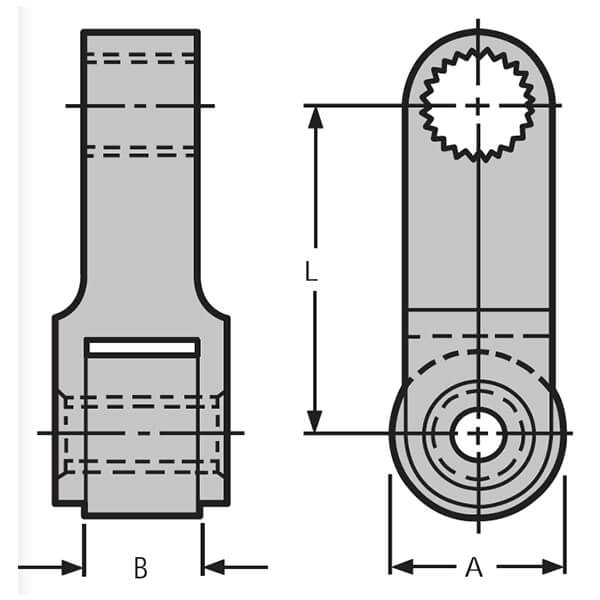

style-rw-levers-diagram
