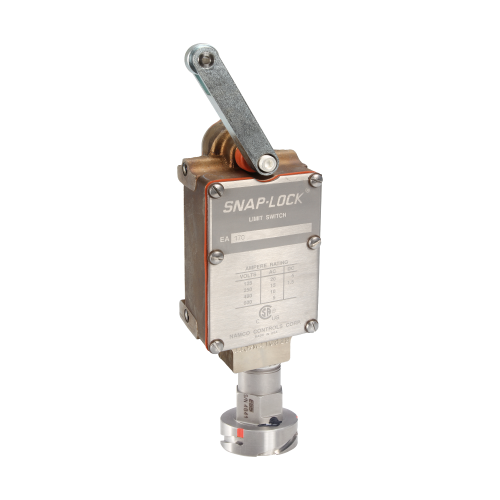

The EA170 Series is a Double Pole Double Throw (DPDT) Limit Switch featuring Rocker Type SNAP-LOCK® Technology. The EA170 Series is qualified for harsh environments without accident conditions. The EA170 Series has two different connection options available: NPT Conduit Opening and QDC. Available in three different mounting styles: Standard, Long and Wide.
Ordering Information:
![EA170 Nomenclature EA170 Nomenclature](/images/default-source/default-album/ea170-nomenclature.png?sfvrsn=1334f487_0&MaxWidth=500&MaxHeight=500&ScaleUp=false&Quality=High&Method=ResizeFitToAreaArguments&Signature=090268486D68E14BEF1180782AC2399DE017799E)
A: Mounting/Shaft Position
1xxxx - Standard Mount & Front Shaft
2xxxx - Wide Mount & Front Shaft
3xxxx - Long Mount & Front Shaft
4xxxx - Standard Mount & Reverse Shaft
5xxxx - Wide Mount & Reverse Shaft
6xxxx - Long Mount & Reverse Shaft
B: Rotation Direction/Trip Travel
x1xxx - Clockwise & Standard Travel
x2xxx - Counterclockwise & Standard Travel
x3xxx - Maintained & Standard Travel
x4xxx - Clockwise & Short Travel
x5xxx - Counterclockwise & Short Travel
x6xxx - Maintained & Short Travel
CDE: Nuclear Qualified Connection Option
xx302 - Open Conduit Entrance
xx402 - 9-Pin Connector
ex. EA170-14302 (Standard Mount & Front Shaft, Clockwise & Short Travel, Open Conduit Entrance)
