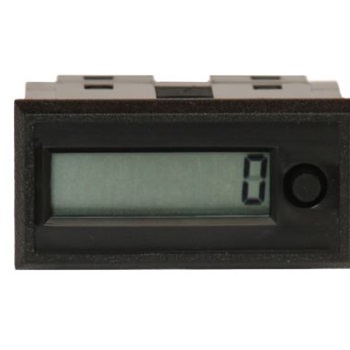

7999 MITE Series Electronic Totalizer

Totalizing Electronic Counter

• Front panel and remote reset.
• NEMA-4/IP65 environmental sealing.
• Easy-to-read, high contrast Liquid Crystal Display (LCD).
• UL recognized, CSA Certified.
• 10-year battery life.
• Quick and easy panel mounting with slide-on clips.
• Supplied with prewired plug-in connector.
• Accessory snap-on adaptors for high voltage count signals.
• Small overall size – minimal 1.2” (30mm) depth behind panel.

Download Datasheet

Applications

7999 MITE Series Electronic Totalizer

The 7999 MITE Series is a versatile family of LCD totalizers that includes unidirectional and bidirectional models. Based on the latest CMOS circuitry, they feature a long-life internal power source, high count-speed capability, and eightdigit liquid crystal display. The bidirectional MITE totalizer provides count/direction operation – one input receives count pulses, while a second input controls counting direction.

7999 MITE Series totalizers are rated NEMA-4/IP65 for water and dust-proof integrity of their front panels when mounted with the provided gasket. Instant reset to zero is accomplished via its front panel push-button or remote-reset command. For non-reset applications, the panel reset can be disabled.

Industries

• Roll Press
• Business and office machines
• Life test equipment
• Printing equipment
• Textiles
• Process Instrumentation
• Laboratory and scientific equipment
• General industrial equipment (piece counting and time totalizing)
