799984-302/304 MicroMITE Series Totalizer

799984-302/304 MicroMITE Series Totalizer

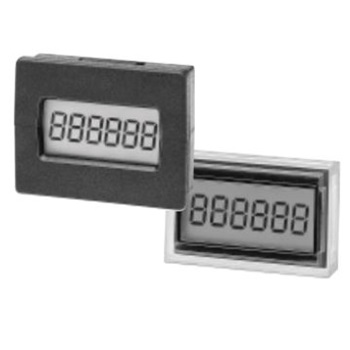

Ultraminiature totalizing counter module for printed circuit board mounting. 6 digit, 6mm high, LCD display. May be powered by an external lithium battery (not supplied), memory and operation are maintained over long life.

A bidirectional counting model, accepts count pulses on one input while a second input commands the counting direction. PCB solderpins are provided for electrical connections. An attractive panel mount installation can be made using the provided bezel.

Count speeds to 10kHz are accepted. All models feature remote electronic reset to zero. An ideal choice where a low cost, high performance totalizing counter is required. Typical applications include metering and dispensing, operation or event counting and electronic distance measurement (odometer).
