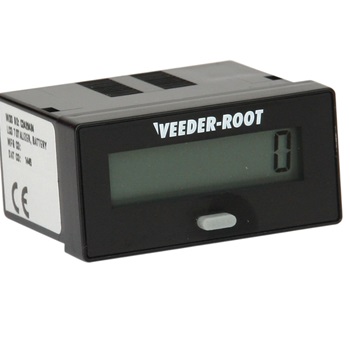

C342 Time Totalizer
Compact Electronic Time Totalizer
- Available with a 8 digit LCD display or a 6 digit LED.
- LED units offer factory entered preset values, and transistor output.
- Bidirectional model suited for position and length measurements.
- Choose from internal battery or DC powered units.
- Field programmable to accept PNP or NPN signals, with models.
- Available for high voltage inputs.
- Compact 1/32 DIN bezel size and short depth.
- Display can be reset from the front panel or remotely; front reset. Button can be disabled.
- IP65 rated front panel for use in washdown environments
Download Datasheet
Search by specifications:
Contact our experts for help:
Applications
C342 Time Totalizer
A very compact totalizing counter available standard with an 8 digit LCD display or 6 digit LED display. Chose from self powered models containing a 7 year lithium battery, or from models accepting an external 12 - 24 VDC power supply. Externally powered units utilize a nonvolatile RAM to keep counted data during absence of power.
Easy field programming allows interface to PNP or NPN count signals, or you may choose a model that directly accepts high voltage (12-250 VAC/DC) AC or DC pulses.
LED models are available with an optional factory programmed preset limit (preset-count specified when ordered) and feature a transistor output that can perform control functions or interact with a PLC. A 6 character alphanumeric message (characters derived from seven segment pattern) can be programmed to appear when the preset count value is reached.
