S628 Series DC Volts/Amps Process Indicator

DC Volts/Amps Process Indicator

• AWESOME 0.71” high digit LED display (27% larger than other 1/8 DIN units)
• Programmable color change display based on an event
• Programmable help function and secondary legend display
• Field configurable alarm outputs
• Max. and min. value capture
• Plug-in option cards include: 2nd relay, digital input, linear output,
• RS-485 communication
• Transmitter power simplifies wiring
• Inputs from 0-100 mV to 0-600 VDC, 0-1 mA to 0-2 amps
• Standard outputs: 2 NPN transistors & 1 relay (optional 2nd relay)
• 250 ms sample time with 0.1% accuracy
• CE approved


Download Datasheet and Manual

Applications

S628 DC Volts/Amps Process Indicator

The Veeder-Root S628 Series DC Volts/Amps is a member of a family of 1/8 DIN instruments which offer breakthrough display technology as well as easy-to-program user setup. Its large LED display features the ability to change color based on process status such as exceeding an alarm value. Therefore, when monitoring process variables in applications using analog signals, the S628 provides operators with an instant visual alert to changes in the application’s status

Process inputs are easily scaled into engineering units by programming two input values and their corresponding display values through the front panel. A teach function, which automatically inputs the current sensor reading as a scale point, further simplifies setup. The two alarms can be setup for high or low operation, reverse or direct acting, and can be latched.

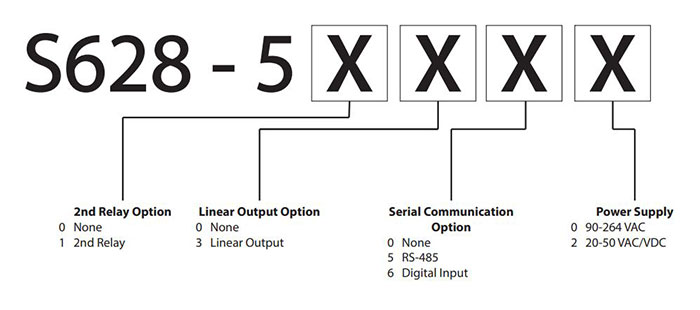

Ordering Information
