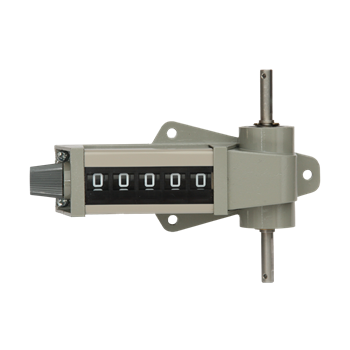

7434 Series Worm Drive Mechanical Totalizer
5 Figure Mechanical Totalizer
- Precision linear measurement of all types of moving materials
- Double stainless steel shafts accept dual measuring wheels
- Heavy-duty ball bearings allow shaft speeds to 3000 rpm
- White-on-black, high contrast figures for easy viewing
- Clean, modern styled enclosure – corrosion and dust resistant
- Models with 3:1, 1:1, or 0.375:1 revolutionto-count ratio
- Counts in yards,1/8 yards, or feet using standard footage wheel
- Counts in meters, using 1/3 meter whee
- Smooth action rotary knob reset
Download Datasheet
Search by specifications:
Contact our experts for help:
Applications
7434 Series Worm Drive Mechanical Totalizer
Available in three popular geared ratios, the 7434 Series is typically used with measuring wheels to totalize feet, yards, 1/8 yards, or meters. Its double-ended shaft can carry two measuring wheels for extra grip and stability in contacting measured material. It is commonly used in the textile, wire and cable, paper, rope, and sheet products industries.
Noncorrosive materials are used throughout for years of trouble-free service. Models are provided that add in the clockwise, or counterclockwise direction. Opposite rotation subtracts. All are right-hand drive.
Other features and configurations are available on special order, such as: shaft variations, special wheel colors and markings, and reset options.
Industries
- Linear measurement of textiles, sheet, roll, paper, rope and cable products.
