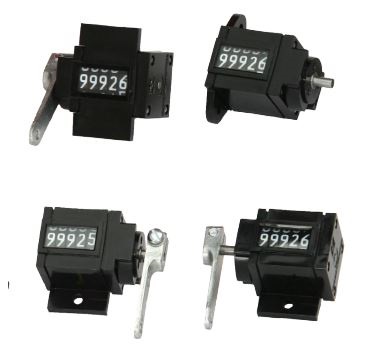

7458, 7459, 7460, 7461 Series Small Square Case Counters

5 Figure Non Reset Mechanical Totalizers

• Precision design provides smooth operation and long service life.
• Easy to see display – High contrast white-on-black figures.
• Scratch resistant front crystal.
• Stainless steel drive shaft; Tough molded case and internal parts.
• Lubrication is never required.
• Compact and lightweight.
• Wide temperature range, -40° to +160°F (-40° to +57°C)

Download Datasheet

Applications

7458, 7459, 7460, 7461 Series Small Square Case Counters

A very popular family of flange mount case, 5-figure nonreset totalizers. All models feature a scratch resistant front crystal, smooth low torque operation, and dust resistant construction.

These counters are compact non-reset counters available with ratchet drive, revolution drive, direct drive or rotary ratchet drive. All these technologies are in the same miniature form factor and can fit in a 1” cube exclusive of flanges. Can be clipped in or clamped to eliminate the need for mounting provisions/flanges.

Models are available with input shaft drives which count from a ratcheting motion, or rotary drives with count per revolution ratios of 1:1, 10:1, or 1:10.

Industries

• Mechanical totalizer for electrical power switchgear, vending machines, broadcast tuners, and turnstiles.
• Injection molding shot counter.
• Optimal for users with space constraints that need a reliable mechanical counter; no power source is required.
