EA080 Series | Compact, Heavy Duty Limit Switch

Heavy Duty

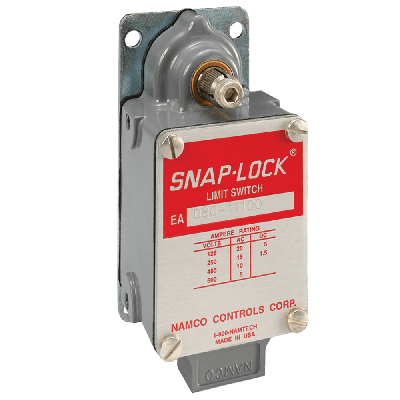

EA080 Series Limit Switch

The compact EA080 Series is a heavy duty, standard travel limit switch featuring one normally open and one normally closed circuit. This quick make, quick break, single pole, double throw (SPDT) limit switch is engineered with Rocker Type SNAP-LOCK^® Technology in a die-cast zinc housing for corrosion resistance. This series is available in standard and wide mounting. The EA080 Series is designed for standard mechanical travel of less than 10º to trip. This limit switch series offers heavy duty butt contacts and heavy operating torque for severe industrial use. For hazardous location requirements, see EA880 Series Heavy Duty Limit Switch.

GENERAL DATASHEET

EA080 SERIES PART NUMBERS

Filter products

Clear filter

by [Limit Switch Shopify] Contact Material
by [Limit Switch Shopify] Actuation Method
- Lever
- Rod
by [Limit Switch Shopify] Shaft Position
- Front Shaft
- Reverse Shaft

Sort by:

29 products

1 2

Limit Switch, Single Pole

EA080-52100

Limit Switch, Standard Environment, CCW, Reverse Shaft, Wide Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-51100

Limit Switch, Standard Environment, CW, Reverse Shaft, Wide Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-43130

Limit Switch, Standard Environment, Extended Reverse Shaft, Maintain,CCW, Long Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-43100

Limit Switch, Standard Environment, Reverse Shaft, CCW, Long Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-42100

Limit Switch, Standard Environment, Maintain, Reverse Shaft, CCW, Long Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-41901

Limit Switch, Extended Reverse Shaft, Plastic Top Cover, CW, Long Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-41123

Limit Switch, Standard Environment, CW, Double End Reverse Shaft, Long Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-41100

Limit Switch, Standard Environment, CW, Reverse Shaft, Long Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-23100

Limit Switch, Standard Environment, Maintain, Wide Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-22100

Limit Switch, Standard Environment, CCW, Wide Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-21900

Limit Switch, 5THD CND-6B Cover Screws, CW, Wide Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-21500

Limit Switch, Plastic Top Cover, CW, Wide Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-21154

Limit Switch, Hi Temperature-Gold Contacts, Standard Environment, CW, Wide Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-21122

Limit Switch, Hi Torque-16 Degree-Special Housing, Standard Environment, CW, Wide Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-21105

Limit Switch, UL, Standard Environment, CW, Wide Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-21100

Limit Switch, Standard Environment, CW, Wide Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-13100

Limit Switch, Standard Environment, Maintain, Long Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-12904

Limit Switch, 12-1/2 deg Pretravel, CCW, Long Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-12300

Limit Switch, , Hi Temperature +150C, CCW, Long Mount, SPDT, NEMA 1,4,13

(?)
Limit Switch, Single Pole

EA080-12100

Limit Switch, Standard Environment, CCW, Long Mount, SPDT, NEMA 1,4,13

(?)

29 products

1 2

How to Select A Lever for Your Limit Switch

Operating levers link your NAMCO limit switch and the moving part of your application. Users must select levers separate from limit switches. It is important to choose an operating lever to suit the needs of your application. The video below provides a quick overview on selecting a lever and a highlight of NAMCO lever options.

Choose Lever by Type:

Knee Action Straight Type (Style KR)

Knee Action Offset Type (Style KRO)

Manual Levers

Adjustable Straight

Adjustable Offset

Belt Misalignment Levers (Style VR and Style YR)

Rod Levers

Technical Data

Quick Make, Quick Break, Single Pole, Double Throw (SPDT)
Rocker Type SNAP-LOCK^® Technology
One normally open & one normally closed (1NO/1NC) contacts in Form “Z” contact arrangement
Meets NEMA 1,4 & 13 requirements. Enclosure is watertight, oil & dust tight
Contacts are made of silver alloy
Temperature Range: -20º C to +90º C
Operating lever is adjustable by 7º30' increments thru 167º
Wiring space is ample for up to size 12 wire with easily accessible terminal screws
Many different options available including: precious metal contacts; high temperature (0º C to 150º C) components and lubricants; low temperature (-40º C to 90º C) components and lubricants; and reverse shaft position
Weight: Approx. 2.3 lbs
For Ordering Information, see EA080 Series Specification Sheet.
Please note, operating levers are sold separately.

Interested in the EA080 Series? Contact us today!

GENERAL DATASHEET

EA080 SERIES PART NUMBERS
